MBS800 Multi Powered Energiser/Charger (12V/230V)

Brand: Gallagher
Brand: Gallagher

MBS800 Multi Powered Energiser/Charger (12V/230V)

SKU: 390314


Incl. VAT 20%
  • Free UK delivery from £60
  • Shipped from our warehouse in the UK
  • 30 day returns
1 - 2 days

- Mains powered - Ideal for fences up to 40 km - Voltage 9,200 V - Charging energy 7.50 Joule - 7 year warranty! Suitable for; horses - cattle - sheep - goats - deer - pigs

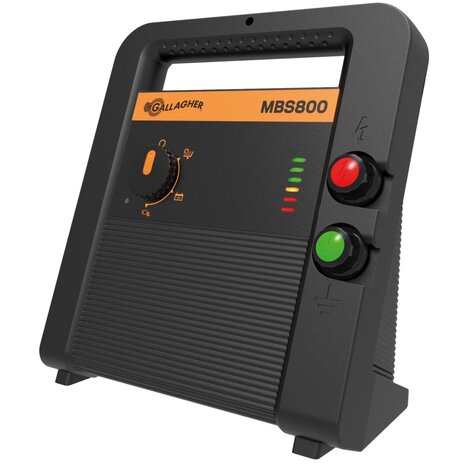

Gallagher MBS800 Multi Powered Energiser/Charger (12V/230V)


The Gallagher MBS800 is a multi-power energiser that can be operated with both 230V AC power, a 12V battery or solar panel. You can select your source of power with a button with various settings.The device is very easy to handle and transport due to its unique (farm-proof) design. The status light (bar chart) shows you the status of the connected battery. The device can supply fences up to a length of 40 km and will be delivered with the required fence connection cables.

230 VoltsOutput VoltageSolar7 year warranty Output VoltageOutput EnergyStatusLightning Protection

Top features Gallagher MBS800 Multi Power Electric Fence Energiser:

  • Powerful dual device
  • Integrated battery power saving modes

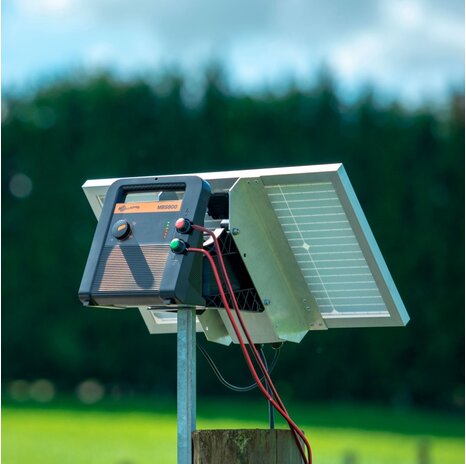

  • Solar panel mode
  • Only battery mode
  • Has a connection for a solar module
  • Battery indicator as a bar chart
  • Integrated lightning protection
  • Recommended solar cell: 60 W

The following 12V batteries fit into this electric fence device:



  • 033409 - 105Ah

The following 12V Optima Yellowtop batteries fit into this electric fence device:

  • 062096 - S5,5L


Battery-management system
The MBS energisers have anunique battery-management system which ensures that the energiser automatically adjusts to the battery's power level. If the energy in the battery decreases, the pulse adjusts automatically to have power on the fencing for as long as possible.

Our recommendation:

To connect the Gallagher MBS800 multi power energiser with a 12V battery, make use of 004938, 582207, 401218 or 401324.

Register your energiser now and receive a 7-year warranty on this product!

Output voltage (V): 9200
Stored energy (J): 7.5
Output energy (J): 4.9
Multiwire distance - ideal conditions (km): 40
Multiwire distance - light growth (km): 29
Multiwire distance - recommended (km): 10
Grid area (hectare/acre): 32/80
Current consumption power supply (W): 6.7
Current Consumption Battery (V/mA): 331/1000
Battery save mode: Yes
Battery LED (indicator): Bar Graph
Built-in lightning diverter: Yes
Auto Power conservation to prevent damage to battery: Yes
Alarm indicator - LED fence voltage: Yes
Night save option: No
Power supply included: Yes
Suitable for solarpanel (W): 60 W
Recommended power supply: 1x Optima YT S5.5L
Recommended number of earth stakes: 4 x 2 m
Dimensions (L x B x H) mm: 245 x 130 x 290
Weight (kg): 2.5
Ideal for/keeping out: Horses, Cattle, Deer, Sheep, Pigs and Goats
